Bags

CVS "Butterfly" Bags

Features:

  • Low profile internal fitting for reduced bag fatigue.
  • Internal tubes for blending and support. The "STANDARD" or typical CVS bags used for years throughout the emissions industry has been the "Butterfly" bag. Our butterfly bags are available in various materials including Tedlar® (PVF) film or Kynar™ (PVDF) film as well as a variety of port sizesand types. Our low profile fitting helps reduce bag fatigue. All of our CVS sample bags are made-to-order to your exact dimensions and specifications. Our bags are double sealed and each is individually leak checked. Every bag is put through our proprietary cleaning process and capped to eliminate background. Internal tubes and fittings can be returned to S.B.T. for re-skinning.




Grid-Vac™ CVS Bags

Features:

  • Low profile internal fitting and grid for reduced bag fatigue.
  • Grid-Vac Bags™ ensures complete blending of gas and evacuation of bag.

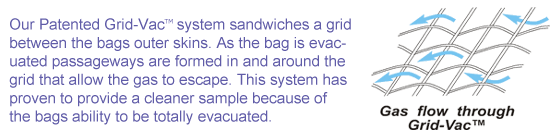

  • Grid-Vac Bags™ allow for easier & less expensive packaging which saves on shipping cost. Our Grid-vac™ sample bag system allows for complete gas blending and evacuation because of the internal grid substrate. The grid provides passageways that do not allow pockets to form that can trap gases. (See diagram 1). Grid-Vac™ Bags are made-to-order to your exact dimensions and specifications. Our bags are double sealed and each is individually leak checked. Every bag is put through our proprietary cleaning process to eliminate any background. Internal fitting can be returned to S.B.T. for re-skinning.



Grid-Vac™ S.H.E.D. Bags

Features:

  • Low profile internal fitting and grid for reduced bag fatigue.
  • Grid-Vac Bags™ ensures complete evacuation of bag.
  • Grid-Vac Bags™ allow for easier & less expensive packaging which saves on shipping costs.
  • High flow input fittings. Grid-Vac™ is the perfect fit in S.H.E.D. testing. With our Grid-System large bag evacuation problems are a thing of the past. Our Grid assures a complete evacuation. And with our exclusive "Floating Fitting" design there are no problems with flow channeling when the bag walls come together. Our SHED Bags are available with a variety of input fittings including quick-connect and barb fittings. Each bag is double sealed and individually leak checked. Our SHED bags are individually packaged for easy storage and use
